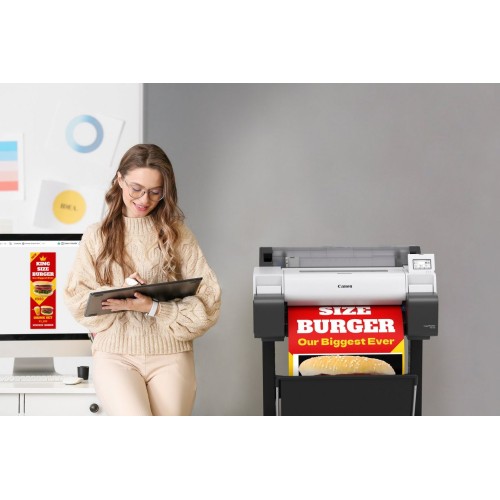

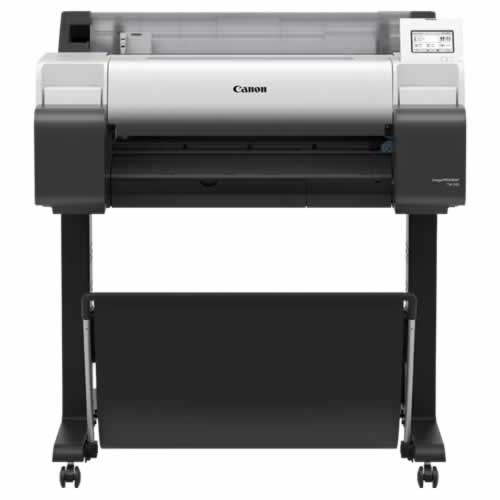

Canon ImagePROGRAF TM-255 24" A1 Large Format Colour Printer

Elevate the large-format printing experience

Seamlessly create professional quality prints with enhanced productivity, sustainable and intuitive device. Produce eye-catching marketing materials and accurate CAD prints as a result of the vivid red colour and sharp lines.

Professional printing quality

Use stable image enhancements to create sharp, crisp lines and new magenta ink for vivid red colour. As a result, you’ll produce vivid and accurate CAD drawings, posters and educational materials.

TM-series 255

Enhanced productivity

Produce A1 CAD prints in just 20 seconds, or A1 posters in 22 seconds. Save time trimming excess margins with borderless prints of any sizes and easily meet higher print demand with larger ink tanks, quick processing time and a fast return from sleep mode.

TM-series 255

Intuitive functionality

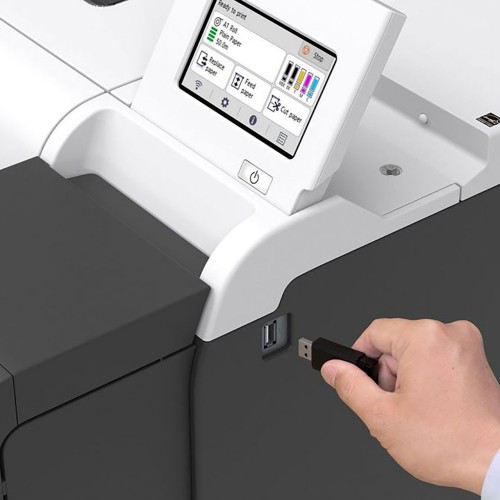

Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover.

• Printer Technology

  Printer Type

  5 Colours 24"

  Print Technology

  Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

  Print Resolution

  2,400 x 1,200 dpi

  Number of Nozzles

  Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each

  Line Accuracy

  ±0.1% or less

  User adjustments necessary. Printing environment and media must match those used for the adjustments.

  Nozzle Pitch

  1,200 dpi x 2 lines

  Ink Droplet Size

  minimum 5pl per colour

  Ink Capacity

  Bundled Starter Ink: 490ml (130ml for MBK, 90mlx4 for BK, C, M, Y)

  Sales Ink: 300 / 130ml (MBK, BK, C, M, Y)

  Ink Type

  Pigment inks : 5 colours MBK/BK/C/M/Y

  OS Compatibility

  32 Bit: Windows7, Windows 8.1, Windows 10

  64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022

  Apple Macintosh: macOS 10.15.7～macOS 13

  Other Supported Job Submission Protocols

  Apple AirPrint

  Printer Languages

  HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

  Standard Interfaces

  USB A Port: USB Memory (Direct Print)

  USB B Port: Hi-Speed USB

  Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)

  Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b




  *Please refer to user manual how to activate/deactivate the wireless LAN

  Memory

  Standard Memory

  128GB (Physcial memory 2GB)

  Expansion slot : No

  Hard Drive

  500GB (Encrypted)

  Print Speed

  CAD Drawing

  Plain paper (A1)

  0:20 (Fast Economy Model)

  0:23 (Fast)

  0:40 (Standard)

  Poster

  Plain paper (A1)

  0:22 (Fast Economy Model)

  0:25 (Fast)

  0:44 (Standard)




  Heavy coated paper (A1)

  0:55 (Fast)

  1:23 (Standard)

  Media Handling

  Media Feed and Output

  Roll Paper : One Roll, Upper-loading, Front Output

  Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)

  Media Width

  Roll paper: 203.2 - 610mm

  Cut sheet: 203.2 - 610mm

  Media Thickness

  Roll/Cut : 0.07mm - 0.8mm

  Minimum Printable Length

  Roll paper: 203.2mm

  Cut sheet: 279.4mm

  Maximum Printable Length

  Roll paper : 18m (varies according to the OS and application)

  Cut sheet : 1.6m

  Maximum Media Roll Diameter

  150mm

  Media Core Size

  Internal diameter of roll core: 2"/3"

  Margins Recommended Area

  Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm

  Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm

  Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm

  Margins Printable Area

  Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm

  Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm

  Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm

  Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

  Media Feed Capacity

  Roll Paper: One roll

  Cut Sheet: 1 sheet

  Media Take-Up Roll Unit

  N/A

  Borderless Printing Width (Roll Only)

  [Recommended]515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24"

  [Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm

  Other than above, free size borderless printing is supprted on only roll paper by user definition

  Maximum Number of Delivered Prints

  Standard position: 1 sheet

  Folding position: Plain paper 20 sheets on A1 portrait

  Flat position: Plain paper 20 sheets on A2 landscape (exclude strong curled position)

  Power and Operating Requirements

  Power Supply

  AC 100-240V (50-60Hz)

  Power Consumption

  Operation: 64W or less

  Sleep mode: 2.2W or less

  Default setting for the time to enter the Sleep mode: Approx. 5 minutes

  Power off: 0.1W or less

  Operating Environment

  Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

  Acoustic Noise (Power/Pressure)

  Operation: Approx. 41dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)

  Standby: 35 dB(A) or less

  Operation: 6.2 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)

  Regulations

  CE mark, UKCA mark

  Environment Certificates

  CB certfication, EPEAT GOLD1

  Dimensions and Weight

  Physical Dimensions and Weight

  W x D x H

  Main unit with stand

  978 x 885 x 1060mm (Operation panel is not tilted up/Basket Opened)

  978 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed)

  54.5 kg (including Roll Holder Set, excluding ink and print head)

  Packaged Dimensions and Weight

  Printer (Main unit with stand and pallet): 1152 x 913 x 946 mm, 96kg

•


Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Notice for PosterArtist WEB

Standard one year manufacturer's warranty.

Two and three year warranty available.
