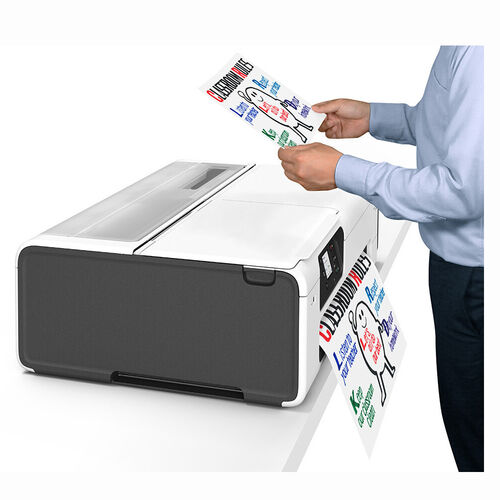

Canon ImagePROGRAF GP-2000 24" A1 11 Colour Poster Printer

Printer Technology

Printer Type

11 Colour 24"

Print Technology

Canon Bubblejet on Demand 11 colours integrated type (12 chips per print head x 1 print head)

Print Resolution

2,400 x 1,200 dpi

Number of Nozzles

Total : 18,432 nozzles MBK, PBK, C, M, Y, GY, R, O, G, V, FP : 1,536 nozzles each

Line Accuracy

±0.1% or less

User adjustments necessary. Printing environment and media must match those used for the adjustments.

CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

Nozzle Pitch

600 dpi x 2 includes Non-firing nozzle detection and compensation system

Ink Droplet Size

minimum 4 pl per colour

Ink Capacity

Bundled Starter Ink : 330 ml (MBK), 160 ml (Others)

Sales Ink : 160 ml, 330 ml, 700 ml

Ink Type

Pigment inks : 11 colour MBK, PBK, C, M, Y, GY, R, O, G, V, FP

OS Compatibility

Microsoft Windows 32 Bit : 7, 8.1, 10

Microsoft Windows 64 Bit : 7, 8.1, 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019

Apple Macintosh : macOS 10.13.6 - macOS 11

Printer Languages

PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

Standard Interfaces

USB A Port : USB Memory Direct Print for JPEG/PDF files

USB B Port : Built-in Hi-Speed USB

Ethernet : IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex

Wireless LAN : IEEE802.11n/IEEE802.11g/IEEE802.11b

*Please refer to user manual how to activate/deactivate the wireless LAN

Memory

Standard Memory

3GB

Expansion slot : No

Hard Drive

500GB (Encrypted)

Print Speed

Poster

Plain Paper (A1):

00:59 (Fast)

01:37 (Standard)

Heavy coated Paper (A1):

01:37 (Standard)

03:09 (High Quality)

Photo Paper (A1):

03:08 (Standard)

04:40 (High Quality)

Media Handling

Media Feed and Output

Upper Roll Paper : One Roll, Front-loading, Front Output

Lower Roll Paper (option) : One Roll, Front-loading, Front Output

Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever)

Media Width

Roll paper : 152.4 mm - 610 mm

Cut sheet : 152.4 mm - 610 mm

Media Thickness

Roll/Cut : 0.07 mm - 0.8 mm

Minimum Printable Length

Roll paper : 101.6 mm

Cut sheet : 203.2mm

Maximum Printable Length

Roll paper : 18 m (Varies according to the OS and application)

Cut sheet : 2133.6mm (With Stand)

Maximum Media Roll Diameter

170 mm

Media Core Size

Internal diameter of roll core : 2"/3"

Margins Recommended Area

Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm

Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm

Margins Printable Area

Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm

Roll paper (borderless print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm

Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity

Roll Paper : 1 roll

Cut Sheet : 1 sheet

Media Take-Up Roll Unit

Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll.

Borderless Printing Width (Roll Only)

[Recommended] 515 mm (JIS B2), 594 mm (ISO A1), 10", 14", 17", 24"

[Printable] 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 6", 8", 12", 15", 16", 20", 22”, 300 mm, 500 mm, 600 mm, and custom roll width (152.4 - 610 mm)

Maximum Number of Delivered Prints

Standard position : 1 sheet

Flat position : A2 landscape, glossy paper up to 10 sheets, coated paper up to 20 sheets (excludes strong curled condition)

Power and Operating Requirements

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation : 84 W or less

Sleep mode : 2.0 W or less　

Default setting for the time to enter the Sleep mode : Approx. 5 Minutes

Power off : 0.3 W or less

Operating Environment

Temperature : 15~30℃, Humidity : 10~80% RH (no dew condensation)

Accoustic Noise (Power/Pressure)

Pressure

Operation : 48 dB (A) (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)

Standby : 35 dB (A) or less

Power

Operation : 6.5 Bels (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)

Regulations

Europe : CE mark

Other Countries : CB certfication

Environment Certificates

TUV, CB

Dimensions and Weight

Physical Dimensions and Weight

1100 x 984 x 1168 mm (Basket Open)

1100 x 766 x 1168 mm (Basket Closed)

102 kg (Main Unit + Stand + Basket, including Roll Holder Set, excluding ink and print head)

Packaged Dimensions and Weight

Printer (Main unit with pallet) : 1324 x 902 x 1042 mm

125 kg

Stand + Basket : 1111 x 797 x 223 mm

23 kg

Roll Unit : 1244 x 562 x 461 mm

26 kg

What's Included

Printer, 1 print head, 1 roll holder (spool), 3 inch paper core attachment, Power Cable, 1 set of starter ink tanks, Set up guide, Printer Stand Setup Guide, Quick Guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Important Information Sheet

Software Included

imagePROGRAF GP Printer Driver and PosterArtist Lite

Other software available as Download from Web.

Options

Optional Items

Printer Stand : SD-21

2/3" Roll Holder : RH2-29

Roll Unit : RU-23

Printer, 1 print head, 1 roll holder (spool), 3 inch paper core attachment, Power Cable, 1 set of starter ink tanks, Set up guide, Printer Stand Setup Guide, Quick Guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Important Information Sheet

Software Included

imagePROGRAF GP Printer Driver and PosterArtist Lite

Other software available as Download from Web.

Standard one year manufacturer's warranty.

Two and three year warranty available.
