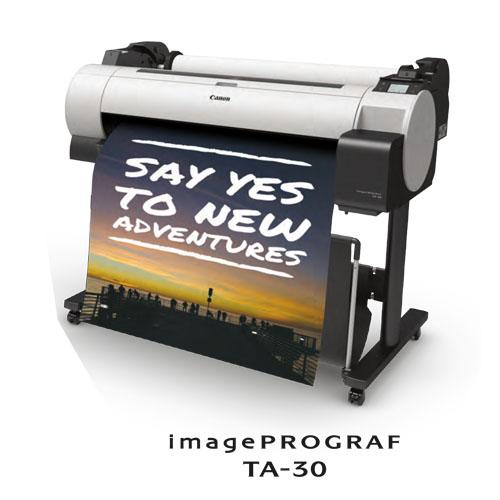

Canon ImagePROGRAF TA-30 36" A0 Compact 5 Colour Pigment Ink Cad & Poster Colour Inkjet Printer 3661C003AA

Canon ImagePROGRAF TA-30 36" A0 Compact 5 Colour Pigment Ink Cad & Poster Colour Inkjet Printer 3661C003AA

The Canon TA-30 A0 Inkjet Printer is perfect for fast printing of CAD and general poster work for any design office or studio. The new pigment inks will produce waterproof prints for indoor and outdoor use, particularly good for short term posters and banners. With its compact design, this printer with a flat rear will fit against a wall to save space and with 60% noise reduction makes it an ideal choice.


Paper rolls to fit the Canon TA-30 A0 Printer Click Here

Including paper for CAD Printing, Tracing, Presentations, Posters, Sew Patterns, Art Prints, Banners, Stickers and Labels.


Canon Ink Tanks, Maintenance Cartridge and Printhead for the Canon TA-30 A0 Printer


PFI-030MBK   Matt Black

PFI-030BK       Black

PFI-030C         Cyan

PFI-030M        Magenta

PFI-030Y         Yellow

MC-31 Maintenance Cartridge

PF-06 Printhead


Minimise media and ink costs with versatile borderless printing

Advanced multi-sensor technology ensures highly accurate borderless printing on any roll size – even when the roll width and print size don’t match. Ink costs are also optimised, with a 55ml ink tank for stunning quality at lower print volume.

Save space
Small and light, the compact design fits flush against the wall with full front accessibility.

Boost productivity
Maintain speed and reduce costs with continuous printing, even during ink tank replacement.

Precision print
Innovative Air Feeding System keeps paper flat for high quality printing on a variety of media.

Product specifications
Borderless print on all standard roll widths and custom-size rolls
Low ink consumption
55ml ink tank for low volume printing
On-screen control
3-inch colour LCD touch panel
Compact design
Space-saving and fully front accessible
Quiet operation
Reduced operation noise for minimal distraction
Precision printing
Air feeding system increases ink accuracy
Superior print quality with Canon LUCIA TD pigment ink
Enhanced security
Secure communication, including SNMPv3 and authentication

Print Technology

Canon Bubblejet on Demand 6 colours integrated type

(6 chips per print head x 1 print head)

Print Resolution

2,400 x 1,200 dpi

Number of Nozzles

15,360 nozzles (MBK 5,120 nozzles, Other Colors 2,560 nozzles each)

Line Accuracy

±0.1% or less

User adjustments necessary. Printing environment and media must match those used for the adjustments.

CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

Nozzle Pitch

1,200dpi (2 lines)

Ink Droplet Size

minimum 5 pl per colour

Ink Capacity

Sales Ink: 55ml

Bundled Starter Ink: 55ml (2 x MBK, 1 x BK,C,M,Y)

Ink Type

Pigment inks - Matte Black, Black, Cyan, Magenta, Yellow

OS Compatability

Microsoft Windows 32 Bit: Vista, 7, 8, 8.1, 10

Microsoft Windows 64 Bit: Windows 7, 8.1, 10,

Windows Server 2008R2, Windows Server 2012/2012R2, Windows Server 2016, Windows Server 2019

Apple Macintosh: OS X 10.10.5~OS X 10.11,

macOS 10.12~ macOS 10.15

Printer Languages

SG Raster (Swift Graphic Raster),HP-GL/2, HP RTL,

JPEG (Ver. JFIF1.02)

Standard Interfaces

USB B Port: Hi-Speed Ethernet: IEEE 802.3 10base- T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex

Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

* Please refer to user manual how to activate /deactivate the wireless LAN

Memory

Standard Memory

2 GB

Hard Drive

NO

Print time for A1 page size

Media Type CAD Drawing Plain Paper

Fast:

00:53 min

Standard:

01:34 min

Poster

Plain Paper (A0 page size)

Fast:

00:50 min

Standard:

01:25 min

Heavy Coated Paper (A0 paper size)

Print Mode Print Time

Fast:

01:44 min

Standard:

03:10 min

Media Handling

Media Feed and Output

Roll Paper: One Roll, Upper-loading, Front Output

Cut Sheet: Upper-loading, Front Output

(Manual feed using media locking lever)

Media Width

Roll paper: 203.2 -917 mm

Cut sheet: 210 - 431.8 mm

Media Thickness

Roll/Cut: 0.07 - 0.8 mm

Minimum Printable Length

Roll paper: 203.2 mm

Cut sheet: 279.4 mm

Maximum Printable Length

Roll paper: 18 m

(Varies according to the OS and application)

Cut sheet: 594mm

Maximum Media Roll Diameter

150 mm or less

Media Core Size

Internal diameter of roll core: 2"/3"(option)

Margins Recommended area

Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm

Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm

Margins Printable area

Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm

Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm

Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity

Manually switchable by user

Media Take-up roll unit

N/A

Borderless Printing Width (Roll Only)

(Printable) 203.2-917mm

*Roll paper only * No size restriction

Maximum number of delivered prints

Standard position: 1 sheet

Dimensions and Weight

Physical Dimensions WxDxH (mm) and Weight (Kg)

1289 x 870 x 1059 mm (Basket Open)

1289 x 757 x 1059 mm (Basket Closed)

53 kg (including Roll Holder Set and Roll unit, excluding ink and print head)

Packaged Dimensions WxDxH (mm) and Weight (Kg)

Printer (Main unit with pallet): 1492 x 909 x 685 mm

74 kg

Stand+ Basket (SD-33): 1362 x 824 x 268 mm

17 kg

Power and Operating Requirements

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation: 59 W or less

Sleep mode: 3.6W or less

Default setting for the time to enter the Sleep mode: approx. 5 mins

Power off: 0.3 W or less

Operating Environment

Temperature: 15~30oC, Humidity: 10~80% RH

(no dew condensation)

Accoustic Noise (Power/Pressure)

Operation: 42 dB (A) (Plain paper, line drawing,  standard mode)

Standby: 35dB (A) or less

Operation: 5.8  Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard  and described based on ISO9296 standard))

Specifications

Europe: CE mark, Russia: EAC,

Certificates

TUV, CB

Optional Items

2/3" Roll Holder: RH2-35

Consumable

User Replaceable Items

Ink Tank: PFl-030 (55ml)

Print Head: PF-06

Cutter Blade: CT-08

Maintenance Cartridge: MC-31


Filters
ApplicationCAD Printing
No. of Printer Inks6 Ink System
Printer SizeA0

Printer, 1 print head, Power Cable, 1 set of starter ink tanks 6 x 55ml inks, Set up guide, Quick Guide, Safety/Standard Environment leaflet, User Software CD-ROM (Win),

EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet


Software Included

imagePROGRAF TA- Unified Printer Driver,

Other software available as Download from Web.

Standard one year manufacturers warranty.

Three and five year warranty available.





The Canon TA-30 is a great, all-rounder wide format A0 printer, providing the versatility for both technical CAD printing alongside the ability to produce water-resistant posters by virtue of the new 5 colour pigment based ink combined with water-resistant media. 10% faster than previous models, and a massive 60% quieter, with the capacity for continuous printing during ink changes are also long desired features for a busy and productive design office.  And if short on office space, the flat rear, space saving design allows you to position this printer flush to the wall. Thank you Canon.


We think this printer offers great value for money.

Write a review

Note: HTML is not translated!
    Bad           Good

Standard delivery

Which takes the form of pallet delivery to a ground-floor entrance, using a tail-lift vehicle. As this is a one-man delivery service, assistance may be required for unloading. The printer will also not be left at your site in the absence of a signature, so you will need to be available at the time of delivery. The unpacking of the printer, together with installation and connection to the network, are all to be carried out by the customer.


Full delivery and installation

Whereby a checklist survey form is completed prior to the printer being delivered and installed. Delivery is performed by a two-man team to a ground-floor location, and you also won’t need to worry about doing your own unpacking, installation, ink loading, testing, or connecting the printer to the network. Our team will also load the printer drivers onto one PC, and provide basic training. All packaging will be removed from the printer for you, including the pallet.


For installations on any floor other than the ground floor, and/or help with complex network requirements, please contact us to discuss your needs in greater detail. 01296 393799 - Email: sales@prizmagraphics.co.uk



  • Views: 4187
  • Brand: Canon
  • Product Code: TA-30
  • Availability: In Stock
  • £1,195.00 Ex VAT
  • Inc VAT £1,434.00

Product Description

Canon ImagePROGRAF TA-30 36" A0 Compact Large Format Colour Inkjet Printer.  Introducing the very latest range of Canon inkjet printers, the Canon TA-30 can produce CAD drawings, posters, presentation prints and short term banners. This affordable, versatile printer will handle media weights up to 300gsm and due to its reduced noise and full front accessibility it's ideal for the office environment.


5 Colours - CAD and Poster Printing

Printer supplied with 6 x 55ml - Total 330ml

Print Speed - 53 seconds for A0 Print Fast Mode

Pigment Inks - Waterproof

2GB Memory

Compact - Can be placed against a wall

Strengthened Security

60% Noise Reduction
