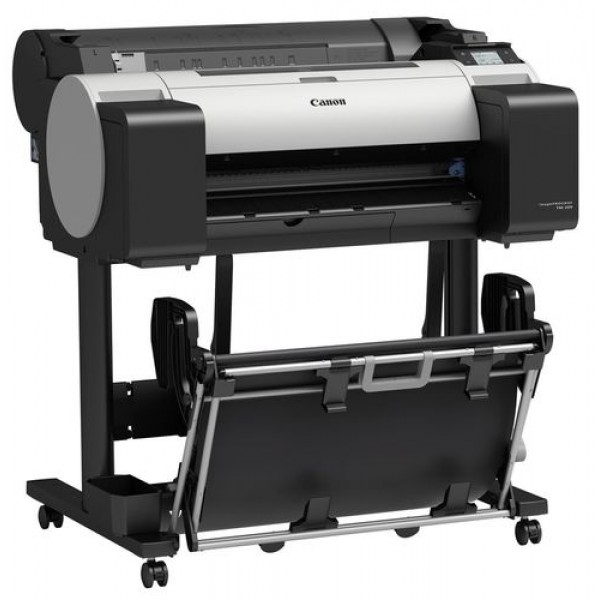

Canon ImagePROGRAF TM-200 24" A1 Compact Large Format Colour Inkjet Printer
The Canon TM-200 A1 Inkjet Printer is perfect for fast printing of CAD and general poster work for any design office or studio. The new pigment inks will produce waterproof prints for indoor and outdoor use, particularly good for short term posters and banners. With its compact design, this printer with its flat rear will fit against a wall to save space and with 60% noise reduction makes it an ideal choice.
We have carefully selected a wide range of media for this versatile A1 printer from CAD papers, Matt Coated paper through to photo and Banner vinyl up to 300gsm. Click Here for Further Information
Inks and Printheads
130ml and 300ml inks available
A1 CAD Image - Plain Paper - Draft - 0.268ml
A1 Rendered Image - Coated Paper - Standard - 0.713ml
A1 Poster Image - Gloss Photo - Standard - 3.18ml
A1 Photo Image - Satin Photo - Standard - 5.432ml
Sharp & vivid
Even plain paper printing is high-quality with the 5-colour full pigment Lucia TD ink system.
Increase print output with the help of a 6-channel, 1.07-inch, optimised print head.
Compact, flush-fitting design with full front usability maximises available office space.
Perfect for smaller offices – reduced vibrations and smoother processes make 60% less noise.
Get production help from Direct Print & Share, PosterArtist Lite, Free Layout Plus, and more.
Print speed 24 seconds per A1 sheet
Ink type Lucia TD 5-colour pigment ink

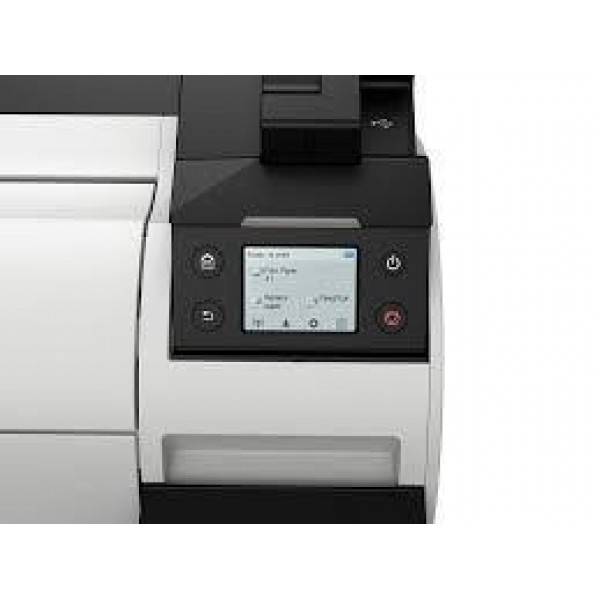

Operation panel 3.0-inch LCD colour touch screen
Print technology Thermal Inkjet
Max print resolution 2400×1200 dpi
Compact body 982 x 887 x 1060 mm
Ink capacity 300 ml and 130 ml
Media thickness 0.07～0.8mm
5 Colour 24"/610mm
Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
2,400 x 1,200 dpi
Number of Nozzles
15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
1,200 dpi (2 lines)
Ink Droplet Size
minimum 5 pl per colour

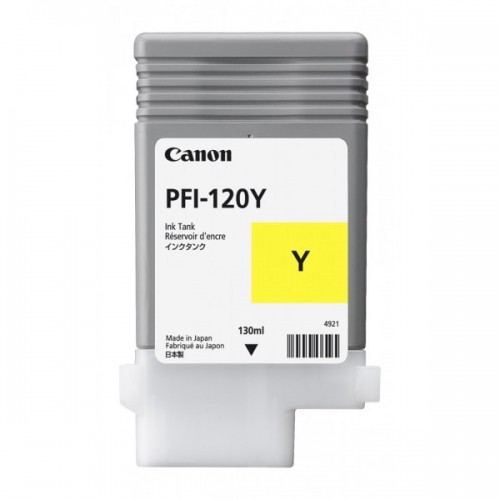

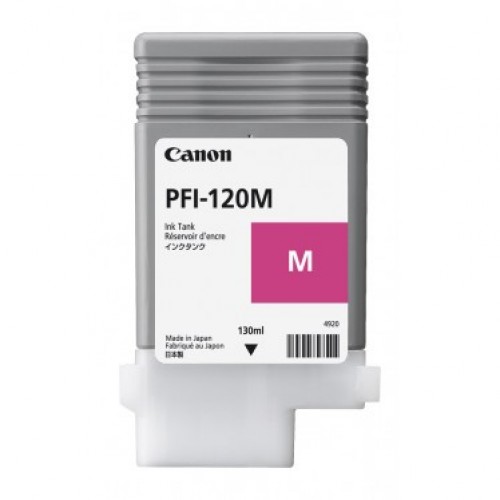

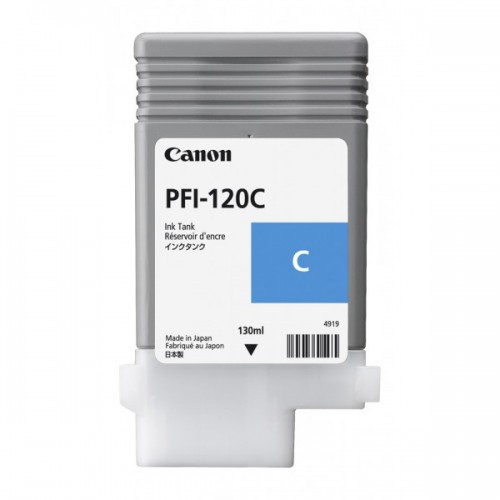

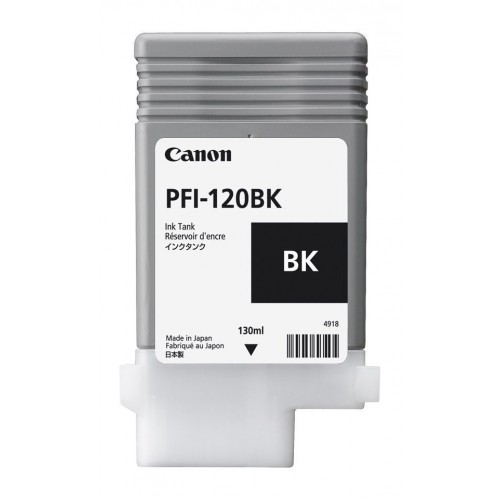

Sales Ink: 130ml/300ml
Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)
Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow
Microsoft Windows 32 Bit: Windows 7, 8.1, 10
Microsoft Windows 64 Bit: Windows 7, 8.1, 10, Windows Server 2008R2, Windows Server 2012/2012R2, Windows Server 2016
Apple Macintosh: OSX 10.10.5 - OSX 10.11, macOS 10.13
SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)
USB B Port: Built-in Hi-Speed USB
Ethernet: IEEE 802.3 1-base-T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
Plain Paper (A1 page size)
0:24 (Fast Economy Mode)
Plain Paper (A1 page size)
Heavy Coated Paper (A1 page size)

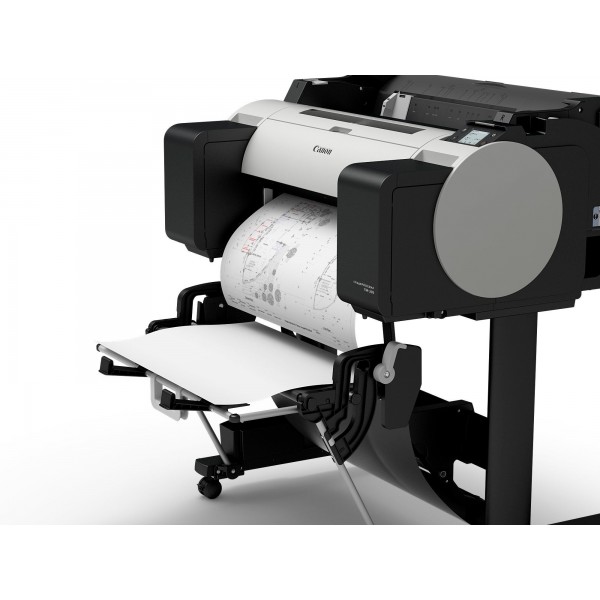

Media Feed and Output

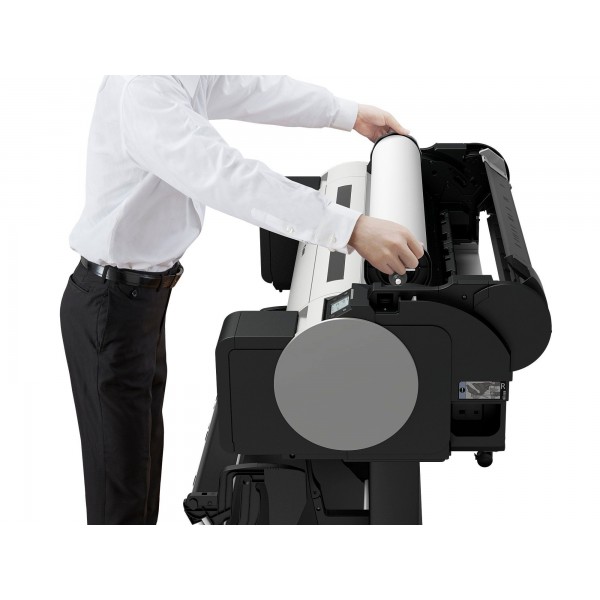

Roll paper: One Roll, Uppper-loading, Front Output
Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Roll paper: 203.2 -610 mm
Cut sheet: 203.2 - 610 mm
Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length
Roll paper: 203.2 mm
Cut sheet: 279.4 mm
Maximum Printable Length
Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m
Maximum Media Roll Diameter
Media Core Size
Internal diameter of roll core: 2"/3"
Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut sheet for others: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Manually switchable by user
Borderless Printing Width (Roll Only)
515mm (JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
[Printable] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8", 12", 16", 20", 300mm, 500mm, 600mm
*Some environmental conditions may not produce the desired result
Maximum number of delivered prints
Standard position: 1 sheet
Flat position: 20 sheets on A2 landscape (excludes strong curled condition)
DIMENSIONS AND WEIGHT
Physical Dimensions and Weight
Main Unit, Stand and Basket
982 x 887 x 1060 mm (Basket Open)
982 x 757 x 1060 mm (Basket Closed)
52 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 1152 x 913 x 705 mm, 69 kg
Stand + Basket: 1155 x 824 x 268 mm, 18 kg
POWER AND OPERATING REQUIREMENTS
AC 100-240V (50-60Hz)
Operation: 69 W or less
Sleep mode: 3.6 W or less
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less
Humidity: 10-80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Operation: 44 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard)
Europe: CE mark, Russia: EAC
|No. of Printer Inks||5 Ink System|
1 x print head
3-inch paper core attachment
UK Power cord (240V,3P)
1 set of starter ink tanks
Set up guide
Safety/Standard Environment leaflet
User software CD-ROM (Win)
PosterArtist Lite CD-ROM
EU Biocide Sheet
Eurasian Economic Union Sheet
Important Information Sheet
Standard one year manufacturer's warranty.
Two and three year warranty available.
This is a great, all-rounder wide format printer, providing the versatility for both technical CAD printing alongside the ability to produce water-resistant posters by virtue of the new 5 colour pigment based ink combined with water-resistant media. 10% faster than previous models, and a massive 60% quieter, with the capacity for continuous printing during ink changes are also long desired features for a busy and productive design office. And if short on office space, the flat rear, space saving design allows you to position this printer flush to the wall.
Keep in mind also that this printer comes with a generous set of starter inks - 130ml Matt Black and one each of 90ml Photo Black, Cyan, Magenta and Yellow - in total 490ml of pigment-based ink that is long-lasting, water-resistant and well suited to poster work as well as CAD.
You can expect to be able to produce up to 1500 A1 CAD prints on plain paper, 350 A1 poster prints on heavyweight paper and up to 140 A1 gloss photo prints when using the standard print mode setting.
Which takes the form of pallet delivery to a ground-floor entrance, using a tail-lift vehicle. As this is a one-man delivery service, assistance may be required for unloading. The printer will also not be left at your site in the absence of a signature, so you will need to be available at the time of delivery. The unpacking of the printer, together with installation and connection to the network, are all to be carried out by the customer.
Full delivery and installation
Whereby a checklist survey form is completed prior to the printer being delivered and installed. Delivery is performed by a two-man team to a ground-floor location, and you also won’t need to worry about doing your own unpacking, installation, ink loading, testing, or connecting the printer to the network. Our team will also load the printer drivers onto one PC, and provide basic training. All packaging will be removed from the printer for you, including the pallet.
For installations on any floor other than the ground floor, and/or help with complex network requirements, please contact us to discuss your needs in greater detail. 01296 393799 - Email: firstname.lastname@example.org
