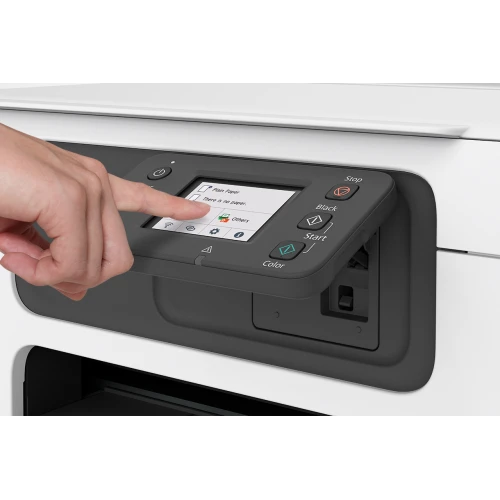

Canon ImagePROGRAF TC-20M 24" A1 Compact 4 Colour Multifunctional Colour Inkjet Printer 5816C003AB

Specifications in detail

Scanner Technology

Scan Technology

Flatbed CIS colour scanner

Maximum Resolution (dpi)

Main scan X sub scan: 1,200 x 2,400 dpi*

*Optical resolution is based on the ISO 14473 standard and represents the maximum sampling rate for scanning documents.

Scanning Depth (Input/Output)

Colour: RGB each 16bit / each8bit

Greyscale: 16bit / 8bit

Line Scanning Speed

Colour: 3.5 ms/line at 300 dpi

Grayscale / Monochrome: 1.5 ms/line at 300 dpi

Maximum Document Size

A4/LTR(216 x 297mm)

Printer Technology

Printer Type

4 Colour 24"

Print Technology

Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head)

Print Resolution

2,400 x 1,200 dpi

Number of Nozzles

Total : 4352 nozzles BK : 1280 nozzles C, M, Y : 1024 nozzles each

Line Accuracy

±0.1% or less

User adjustments necessary. Printing environment and media must match those used for the adjustments.

Nozzle Pitch

1,200 dpi x 2 lines

Ink Capacity

Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y)

Sales Ink: 70ml (BK, C, M, Y)

Ink Type

Pigment inks : 4 colour BK/C/M/Y

OS Compatibility

32 Bit: Windows7, Windows 8.1, Windows 10

64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022

Apple Macintosh: macOS 10.14.6～macOS 12.x

Other Supported Job Submission Protocols

Apple AirPrint, Mopria, Chrome OS

Printer Languages

USB Memory Direct Print1: PDF, JPEG (Exif ver2.2/2.21/2.3)

Standard Interfaces

USB A Port: USB Memory (Direct Print) - PDF/JPEG (Exif ver2.2/2.21/2.3)

USB B Port: Hi-Speed USB

Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T)

Wireless LAN*: IEEE802.11n/IEEE802.11g/IEEE802.11b

*Please refer to the user manual how to activate / deactivate the wireless LAN

Memory

Standard Memory

1GB

Expansion slot : No

Hard Drive

N/A

Print Speed

CAD Drawing

Plain paper (A1, B&W):

0:33 (Standard)

Plain Paper (A1, Colour):

1:03 (Standard)

Poster

Plain Paper (A1)

1:10 (Fast)

2:08 (Standard)

Coated Paper (A1)

3:10 (Fast)

6:05 (Standard)

Media Handling

Media Feed and Output

Roll Paper : One Roll, Front-loading, Front Output

Cut Sheet : Auto sheet feeder

Media Width

Roll paper : A3, A2, A2+, A1, B2, B3, 18'', 24'', 17''

Cut sheet: 210mm - 297mm

Media Thickness

Roll/Cut : 0.08mm - 0.28mm

Minimum Printable Length

Roll/Cut : 203.2mm

Maximum Printable Length

Roll paper : 4m

Cut sheet : 432mm

Maximum Media Roll Diameter

110mm

Media Core Size

Internal diameter of roll core: 2"

Margins Recommended Area

Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm

(some photo mode: Top: 30mm, Bottom: 30mm)

Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm

Margins Printable Area

Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm

(some photo mode: Top: 30mm, Bottom: 30mm)

Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm

Media Feed Capacity

Roll Paper: One roll

Cut Sheet: 100 sheets(A4), 50 sheets (A3)

Media Take-Up Roll Unit

N/A

Borderless Printing Width (Roll Only)

N/A

Maximum Number of Delivered Prints

Desktop Basket (BU-06): Standard position - 1 sheet

Power and Operating Requirements

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation: 28W or less

Sleep mode: 2.4W or less

Default setting for the time to enter the Sleep mode: Approx. 5 minutes

Power off: 0.3W or less

Operating Environment

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

Acoustic Noise (Power/Pressure)

Operation: Approx. 41.5 dB(A) (Plain paper, Standard mode, Line Drawing/Text mode)

Standby: 35 dB(A) or less

(Measured on ISO 7779 standard)

Regulations

CE mark, UKCA mark

Environment Certificates

CB certfication, EPEAT GOLD2

Dimensions and Weight

Physical Dimensions and Weight

W x D x H

Main Unit

968 x 545 x 395 mm (ASF Opened)

968 x 525 x 245 mm (ASF Closed)

33 kg (exclude ink bottle, include print head)

Main Unit + Desktop Basket (BU-06)

968 x 825 x 965* mm (Basket Opened)

968 x 525 x 965* mm (Basket Closed)

34 kg (exclude ink bottle, include print head)

*Height above which cloth does not touch the floor when opening the desktop basket

Main Unit + Stand + Basket (SD-24)

968 × 870 × 874 mm (Basket Opened)

968 × 707 × 874 mm (Basket Closed)

42 kg (exclude ink bottle, include print head)

Packaged Dimensions and Weight

Printer (Main unit): 1120 x 726 x 406 mm, 45kg

Desktop Basket (BU-06): 798 x 301 x 111 mm, 1.8kg

Stand + Basket (SD-24): 1055 x 824 x 268 mm, 16kg

What's Included

What's in the Box?

Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet

Software Included

Software available as Download from Web

.What's in the Box?

Printer, 1 Print head, Power Cable, 1 Set of 280ml starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet

Software Included

Software available as Download from Web

Standard one year maufactureres warranty.

Three and five year warranty available.
