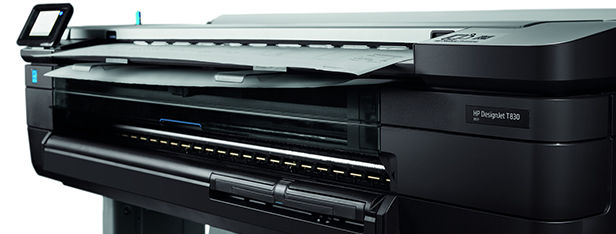

HP Designjet T830 MFP Printer, Scanner & Copier 36" A0 CAD & General Purpose F9A30A

HP Designjet T830 MFP Printer, Scanner & Copier 36" A0 CAD & General Purpose F9A30A

Print, scan, copy, and share—robust, compact 36-inch Wi-Fi MFP for office and construction

ROBUST—Damage-resistant for offices and job sites

Half the size,2 built to last—this robust MFP handles activity at challenging sites, even construction

Produces prints 3 times faster than previous HP models—see A1/D-size prints delivered in 25 seconds

Choose from 40- to 300-ml HP ink cartridges to fit your print volume, large supplies can reduce interventions

Transport and onsite dust, damage protection with optional HP DesignJet Rugged Case

CONVENIENT—Easy operation helps users save time

Complete tasks intuitively—almost 3 times faster vs other devices3—one touchscreen works like a smartphone

Cut waste by 50%—print at half scale with automatic sheet feeder/tray; cut extra work, waste of wide rolls4

No LAN needed—move this MFP any time, any place your Wi-Fi signal can reach with wireless connectivity5

COLLABORATION—Mobile print/scan for team sharing

Use integrated scanning to capture and share feedback, enable archiving, and more

The printer creates its own Wi-Fi network for easy connectivity with Wi-Fi Direct

Conveniently scan, share, print right from your smartphone or tablet;5 enjoy a smartphone-like experience

Manage scans from your mobile device with the HP AiO Printer Remote app,6 enabled by HP Mobile Printing

1 Based on 36-inch Wi-Fi integrated MFPs available in the market as of September, 2015.

2 The HP DesignJet T830 Multifunction Printer is the most compact 36-inch device performing large-format print/scan/copy functions and is at least half the size (without the legs) based on H x W x L specifications published as of September, 2015.

3 Usability compared to competitive alternatives and based on internal HP testing and methodology in September, 2015 evaluating ease-of-use for first-time users comparing the time and additional assistance required to complete the task of copying a color A0-size document and scaling it down to A3 size on the HP DesignJet T830 Multifunction Printer with a single touchscreen compared to using a separate printer and standalone scanner.

4 Printing on sheets eliminates the extra work and cutting waste of printing on performance equivalent roll-based printers in the market as of September, 2015. For example, printing at half scale (13.5 inches) on a typical (36-inch) roll results in over 50% paper waste and additional labor to cut.

5 Local printing requires mobile device and printer to be on the same network (usually Wi-Fi access points bridge wireless to wired connections) or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area. See hp.com/go/designjetmobility for more details.

6 The HP All-in-One Printer Remote mobile app is available for Apple® iPad, iPhone, and iPod Touch running iOS v7.0 or later and for Android™ mobile devices running Android™ v4.4 or later. The HP All-in-One Printer

Remote mobile app is available for free from the Apple® App Store for Apple® mobile devices and from the Google Play Store for Android™ mobile devices.

Read a case study on the new HP T830e MFP Scan/Copy/Print System Click Here


Prizma Graphics - HP Designjet Specialist - We offer independent advice and support to ensure you make the right choice.

Call 01296 393700 for further help.

  • Functions - Print, copy, scan
  • Model size - 914 mm
  • Print speed line drawing (economode, A1 plain paper) - 82 A1 prints per hour
  • Print technology - HP Thermal Inkjet
  • Printer drivers included - HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X and Windows
  • Print quality color (best) - Up to 2400 x 1200 optimised dpi
  • Print languages - HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI, URF
  • Number of print cartridges - 4 (cyan, magenta, yellow, black)
  • Compatible ink types - Dye-based (C, M, Y); Pigment-based (K)
  • Line accuracy - +/- 0.1%
  • Maximum optical density (black) - 8 L* min/2.10 D
  • HP ePrint capability - Yes
  • Connectivity, standard - Gigabit Ethernet (1000Base-T); Wi-Fi; Hi-Speed USB 2.0 certified connector
  • Connectivity, optional - HP USB 3.0 to Gigabit LAN Adapter
  • Network ready - Standard
  • Memory, standard - 1 GB
  • Memory, maximum - 1 GB
  • Hard disk - None
  • Finished output handling - Sheet feed, roll feed, input tray, media bin, automatic cutter
  • Media sizes standard (metric rolls) - 210 to 914 mm wide sheets; 279 to 914 mm rolls
  • Media sizes, custom - Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 914 x 1897 mm; Roll: 279 to 914 mm
  • Media types - Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
  • Roll external diameter - 100 mm
  • Media thickness - Up to 11.8 mil
  • Scanner type - Sheetfed, CIS (Contact Image Sensor)
  • Scan resolution, optical - Up to 600 dpi
  • Enhanced scanning resolution - 600 dpi
  • Bit depth - 24-bit/8-bit
  • Scan size (flatbed), maximum - 914 mm x 2.77 m
  • Linear scan speed - Up to 3.81 cm/sec (colour, 200 dpi); Up to 11.43 cm/sec (greyscale, 200 dpi)
  • Copy resolution (color text and graphics) - Up to 600 x 600 dpi
  • Copy reduce / enlarge settings - 25 to 400%
  • Copies, maximum - Up to 99 copies
  • Copier settings - Content type; Lighter/Darker; Background noise removal; Background colour removal; Blue print invert; Translucent media; Colour; Scan full width (36-in); Auto De-skew; Long plots; Resize; Copy Margins; Quality
  • Power - Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max
  • Power consumption - 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
  • Energy efficiency - ENERGY STAR® qualified
  • ENERGY STAR® qualified - Yes
  • Operating temperature range - 5 to 40ºC
  • Minimum dimensions (W x D x H) - 1403 x 629 x 1155 mm
  • Weight - 62.5 kg
  • Package dimensions (W x D x H) - 1578 x 575 x 646 mm
  • Package weight - 85 kg

ApplicationCAD Colour Scan/Copy/Print
Hard DriveNo
Ink CompatibilityDye - C,M,Y Pigment - Black
Max Paper/Media Weight280gsm
Memory1 Gb
No. of Printer Inks4 Ink System
Print SpeedA1 Line Drawing 28 Sec
Printer OptionsWiFi
Printer SizeA0
Roll FeedYes
ScannerYes - Colour Scan File Format - JPEG, PDF, TIFF
Scanner Resolution600 dpi
Sheet FeedYes

HP DesignJet T830 MFP

Printer Floor Stand and Collection Bin


Introductory Ink cartridges (x4)

Spindle (extra spindles can be purchased for quick change of paper)

Quick reference guide

Setup poster

Startup software

Power cord

Refeed Protectors

Software included

Startup software

HP Utility for Mac and Windows

Free of Charge 2 x Paper rolls - 90gsm CAD Paper 841mm x 45m

The HP T830 A0 Printer comes with a two year warranty as standard.

For peace of mind. we supply three, four and five year HP Carepacks with next day on site service support.  Click here for full information and to order with your printer.

If you would like to discuss the best option for you, please call our knowledgeable sales team who will be happy to advise on 01296 393700.

For CAD monochrome and line colour technical drawings, an uncoated paper is all you need to produce high quality prints with the HP T830 plotter. Our PCR90 Uncoated Inkjet Plotter Paper is our most popular paper, being a heavier 90gsm weight and a high performing and affordable option. Importantly, this is a consistent paper for consistently high quality results that can cope with light solid fill as well as line colour output.

However, this HP T830 printer will also allow you to create full colour presentations and posters. For high quality results a coated paper is a must and for this purpose we recommend our CJSC100 Coated Inkjet Plotter Paper 100gsm or our PHR120 Coated Inkjet Plotter Paper 120gsm. Both of these papers have a smooth, white surface that can cope with the heavier ink loads required for presentations with vivid colours and superb contrast, all with the fast drying time necessary for pristine results.

But that's not all this printer can achieve. Upgrade your paper to our Matt Coated Inkjet Poster Paper 165gsm and 180gsm or Satin Photo Paper in, for example, a 190gsm weight and the HP T830 will allow you to produce your own in house posters within the spectrum of the 4 colour gamut. Both our Coated Poster Papers and Satin Photo Paper are ideal for maps, photos and charts, with a microporous coating that enables the ink to dry instantly with fantastic colour contrast for sharp, brilliant images.

Our opinion here at Prizma Graphics is that the HP DesignJet T830 MFP is the best compact A1 and A0 wide format printer scanner for the small to medium-sized workgroup to have become available to date.

A compact, easy to use, robust and standalone multi-function printer scanner with a media bin for catching your prints as they are automatically cut, handy for unattended printing. The scanner is mounted on top of the printer which maintains a small footprint.

Ideal for design studios and architectural practices as well as constructional engineering and building companies that require a versatile printer and scanner with the option to produce presentation prints and in-house posters and copy originals with a maximum thickness of 0.8 mm.

A fully networked printer scanner with Wi-Fi connectivity, so you can place it anywhere within reach of your Wi-Fi signal.  Plus, HP Mobile Printing for remote printing direct from your Apple or Android Smartphone or Tablet.

Images can be scanned to a PC on your network or to a memory stick using the USB drive, useful for taking your images off-site. In addition, images can be scanned for archiving or emailing, copied in monochrome or colour and resized.

Faster print speeds than the HP T520, print an A1 CAD drawing in 25 seconds, 82 A1 prints per hour.

Flexible roll size capacity from 297mm to 914mm plus a sheet feed tray for A3 and A4 cut sheets.

Flexible ink cartridge capacity from 40ml to 300ml to allow you to select the best cartridge to suit your print volumes.

HP DesignJet Rugged Case available to protect against water, dust and damage while transporting on location. The large rugged wheels provide stability and traction. Easy to open and close case when you are using the printer with the case on.

Two  year warranty as standard providing additional piece of mind.

Write a review

Note: HTML is not translated!
    Bad           Good

Standard delivery

Which takes the form of pallet delivery to a ground-floor entrance, using a tail-lift vehicle. As this is a one-man delivery service, assistance may be required for unloading. The printer will also not be left at your site in the absence of a signature, so you will need to be available at the time of delivery. The unpacking of the printer, together with installation and connection to the network, are all to be carried out by the customer.

Full delivery and installation

Whereby a checklist survey form is completed prior to the printer being delivered and installed. Delivery is performed by a two-man team to a ground-floor location, and you also won’t need to worry about doing your own unpacking, installation, ink loading, testing, or connecting the printer to the network. Our team will also load the printer drivers onto one PC, and provide basic training. All packaging will be removed from the printer for you, including the pallet.

For installations on any floor other than the ground floor, and/or help with complex network requirements, please contact us to discuss your needs in greater detail. 01296 393799 - Email: sales@prizmagraphics.co.uk


  • Views: 13934
  • Brand: HP
  • Product Code: F9A30D
  • Pack Qty: 1
  • Individual Price : £2,995.00
  • Availability: In Stock
  • £2,995.00 Ex VAT
  • Inc VAT £3,594.00

Product Description

The HP DesignJet T830 36" A0 Multifunction Printer. A robust, compact and versatile Wi-Fi printer with a built-in scanner - at an unbeatable price.

Print, scan, copy, and share.


The HP DesignJet T830 is, in fact, the same printer as the T730 with all of the same key benefits, including the ability to produce full-colour photographic images within the limitations of the four ink colours of Cyan, Magenta, Yellow and Matte Black as well as technical CAD drawings. The T830 can print A1 CAD drawings in just 25 seconds, and 82 A1 prints in an hour. However, one of the real defining aspects of the T830 is its built-in scanner, transforming this printer into a wide format colour copier:

  • The scanner is mounted on top of the printer making this a compact unit with a small footprint.
  • Both the printer and scanner can be operated with the touchscreen on the left-hand side of the unit.
  • Easy to use scanner capable of scanning full-colour technical documents with a maximum thickness of 0.8mm.
  • Scanner resolution is 600dpi in file formats PDF, JPEG and TIFF.
  • Images can be scanned to a PC on your network or to a memory stick using the USB drive, useful for taking your images off-site.
  • Scan images for archiving or emailing, copy images in monochrome or colour and resize images.

Special Offer until End of June 2021

Trade-in included in the price and 2 free rolls of plotter paper 841mm x 45m.
