Canon ImagePROGRAF TM-340 MFP Lm36 A0 Printer/Copier/Scanner

Specifications in detail

Scanner Technology

Scan Technology

SingleSensor with multiple LED Illumination

Maximum Resolution (dpi)

600dpi

Scan Speed

COPY

300/300dpi Draft = 1ips colour, 3ips mono

300/600dpi Standard = 1ips colour, 3ips mono

600/600dpi Best = 0.5ips colour, 1.5ips mono

SCAN

200dpi Draft = 1ips colour, 3ips mono

300dpi Standard = 0.5ips colour, 1.5ips mono

600dpi Best = 0.33ips colour, 1ips mono

Scan Modes

Scan to USB - RGB/Greyscale/BW, TIFF (No ScanApp)

Scan to USB - RGB/Greyscale/BW, JPG, PDF, PDF/A, M-PDF (ScanApp available)

Scan to PC - RGB/Greyscale/BW, Tiff, JPEG, PDF, PDF/A, TiffG4, M-PDF

Copy - RGB/Greyscale/BW

Copy & Archive – (Combination of Copy and Scan to PC above).

Cloud connectivity is achieved by a link to Canon’s Direct Print & Share.

PRINT is achieved by using Canon’s Direct Print & Share.

Paper Path

Face up, rear exit. Forward document transport only

Document return guide(s) included

Maximum Scan Width

36” / 914.4mm

Minimum Scan Width

6" / 152.4mm

Maximum Document Width

38” / 965.2mm

Maximum Scan Length

109” / 2768mm

Document Thickness

Designed to scan Canon iPF printer CAD paper.

Min = 0.07mm

Max = 0.8mm

Scan Accuracy

Accuracy 0.2% +/-1 pixel

Interface USB

USB2, 128GB FAT32.

Scan to Network

ScanApp - Sets scan directory.

Minimum PC specification: • Windows 7/8/10 - 32bit.

• 100Mbs Ethernet. • Intel Celeron, Core-Duo, Core-2-Duo or 2.8GHz Hyper-Threading (HT) or AMD Dual-Core processors

• 2GB RAM • High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.

Suggested PC specification: • Windows 7/8/10 - 64bit.

• GB Ethernet. • Intel i3,i5 or i7 processors • 4GB RAM

• High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.

Languages

ScanApp

English/French/German/Italian/Spanish/Simplified Chinese/Traditional Chinese/Korean/Russian/Portuguese/ Japanese/Czech/Polish

Control Panel

3.5” touch screen display

Weight of Scanner

6.56kg (14.5lbs) without Doc return guide

Dimensions (W x D x L)

Width: 1238mm

Height: 131mm

Depth:

Without Doc Return Guide - Paper tray folded: 146mm

Without Doc Return Guide - Paper Tray flat: 193mm

With Doc Return Guide - Paper tray folded: 206mm

With Doc Return Guide - Paper Tray flat: 253mm

Compliances

Europe : CE mark, Other countries : CB certification

What's in the Box?

Lm36 scanner

Printer mounting brackets, fixings & 3mm tool

2 feet for desktop use

2 paper edge guides

3 Document return guides

Calibration target

CD for ScanApp software and PDF documentation:

Lm36 Scanner User Manual per language and Quick Start Guide.

Lm36 Scanner Quick Start Guide.

Ethernet cable (2 meter)

Power Supply

Regional - Mains power cord(s) (2 meter)

Printer Technology

Printer Type

5 Colours 36"

Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

Print Resolution

2,400 x 1,200 dpi

Number of Nozzles

Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each

Line Accuracy

±0.1% or less

User adjustments necessary. Printing environment and media must match those used for the adjustments.

Nozzle Pitch

1,200 dpi x 2 lines

Ink Droplet Size

minimum 5pl per colour

Ink Capacity

Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y)

Sales Ink: 55ml (MBK, BK, C, M, Y)

Ink Type

Pigment inks : 5 colours MBK/BK/C/M/Y

OS Compatibility

32 Bit: Windows7, Windows 8.1, Windows 10

64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022

Apple Macintosh: macOS 10.15.7～macOS 13

Other Supported Job Submission Protocols

Apple AirPrint

Printer Languages

HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

Standard Interfaces

USB A Port: N/A

USB B Port: Hi-Speed USB

Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)

Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

*Please refer to user manual how to activate/deactivate the wireless LAN

Memory

Standard Memory

2GB

Expansion slot : No

Hard Drive

N/A

Print Speed

CAD Drawing

Plain paper (A1)

0:21 (Fast Economy Mode) 2.7ppm

Plain paper (A0)

0:41 (Fast Economy Mode)

0:42 (Fast)

1:25 (Standard)

Poster

Plain paper (A0)

0:43 (Fast Economy Mode)

0:43 (Fast)

1:25 (Standard)

Heavy coated paper (A0)

1:42 (Fast)

3:10 (Standard)

Media Handling

Media Feed and Output

Roll Paper : One Roll, Upper-loading, Front Output

Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)

Media Width

Roll paper: 203.2 - 917mm

Cut sheet: 210 - 917mm

Media Thickness

Roll/Cut : 0.07mm - 0.8mm

Minimum Printable Length

Roll paper: 203.2mm

Cut sheet: 279.4mm

Maximum Printable Length

Roll paper : 18m (varies according to the OS and application)

Cut sheet : 1.6m

Maximum Media Roll Diameter

150mm

Media Core Size

Internal diameter of roll core: 2"/3" (Optional)

Margins Recommended Area

Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm

Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm

Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm

Margins Printable Area

Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm

Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm

Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm

Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

Media Feed Capacity

Roll Paper: One roll

Cut Sheet: 1 sheet

Media Take-Up Roll Unit

N/A

Borderless Printing Width (Roll Only)

[Recommended] 515mm(JIS B2), 728mm(JIS B1), 594mm(ISO A1), 841mm(ISO A0), 10", 14", 17", 24", 36"

[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm

Other than above, free size borderless printing is supported on only roll paper by user definition

Maximum Number of Delivered Prints

Standard position - 1 sheet

Power and Operating Requirements

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation: 65W or less

Sleep mode: 2.2W or less

Default setting for the time to enter the Sleep mode: Approx. 5 minutes

Power off: 0.1W or less

Operating Environment

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

Acoustic Noise (Power/Pressure)

Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)

(Measured based on ISO7779 standard)

Standby: 35 dB(A) or less

Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)

(Measured based on ISO7779 standard)

Regulations

CE mark, UKCA mark

Environment Certificates

CB certfication, EPEAT GOLD1

Dimensions and Weight

Physical Dimensions and Weight

W x D x H

Main unit with stand

1285 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened）

1285 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed）

59.2 kg (including Roll Holder Set, excluding ink and print head)

Packaged Dimensions and Weight

Printer (Main unit with stand and pallet): 1462 x 912 x 801 mm, 100kg

What's Included

What's in the Box?

Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Basic Printer Stand Setup Guide, Notice for PosterArtist WEB

Software Included

Software available as Download from Web

Options

Optional Items

2"/3" Roll Holder: RH2-35

IC Card Reader Holder: RA-02

Consumables

User Replaceable Items

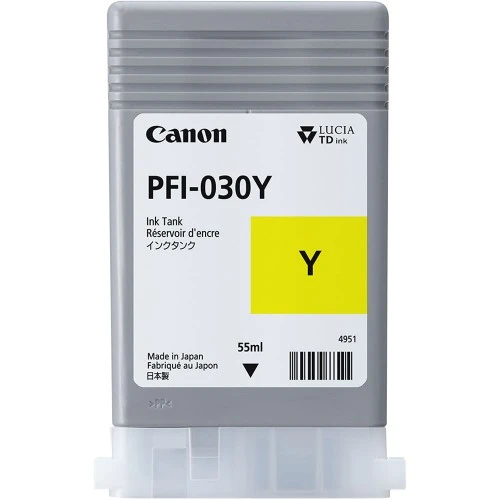

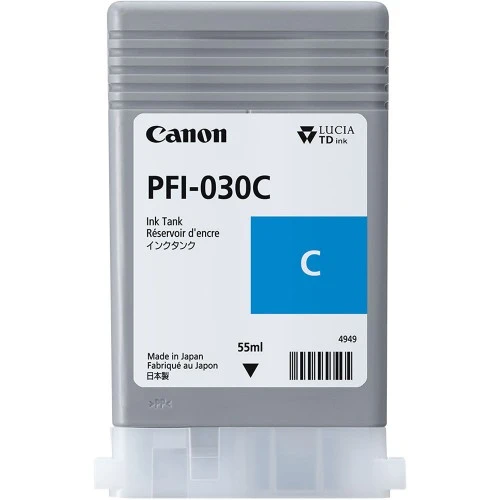

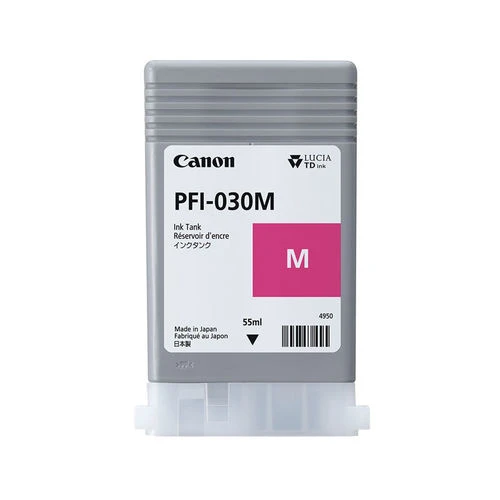

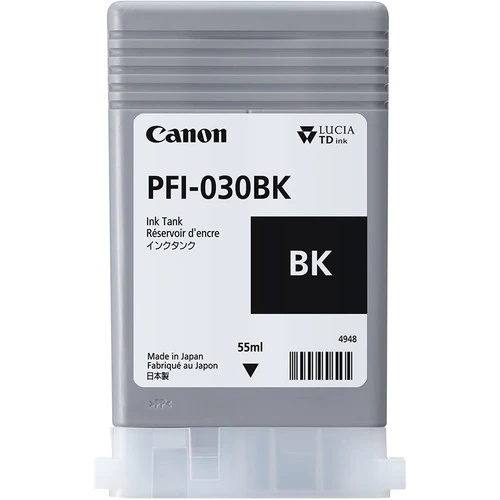

Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y:PFI-030(55ml)

Print Head: PF-06

Cutter Blade: CT-08

Maintenance Cartridge: MC-31

A relatively affordable and compact 36" A0 five colour printer/scanner for those requiring the efficient and reliable production of professional-quality prints and with formidable specifications : intuitive to use, less noisy in their operations than previous models and capable of yielding prints characterised by vivid colours and crisp lines. A very helpful and generous 300 ml starter ink pack is included in the price, all of which are water resistant pigment ink and includes Canon's new magenta ink. We also like the compact dimensions and space saving design, easily allowing the device to be placed against a wall.

To read our write-up on the TM-340 MFP in full click here
